Specifications
- Manufacturer: Harley-Davidson

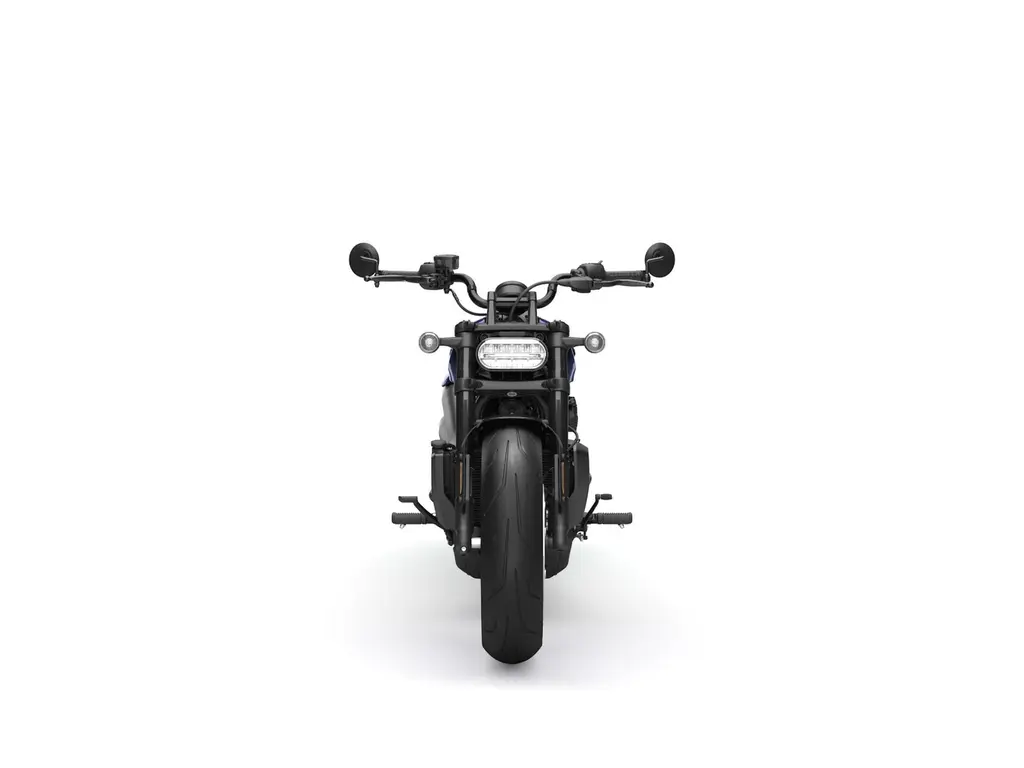

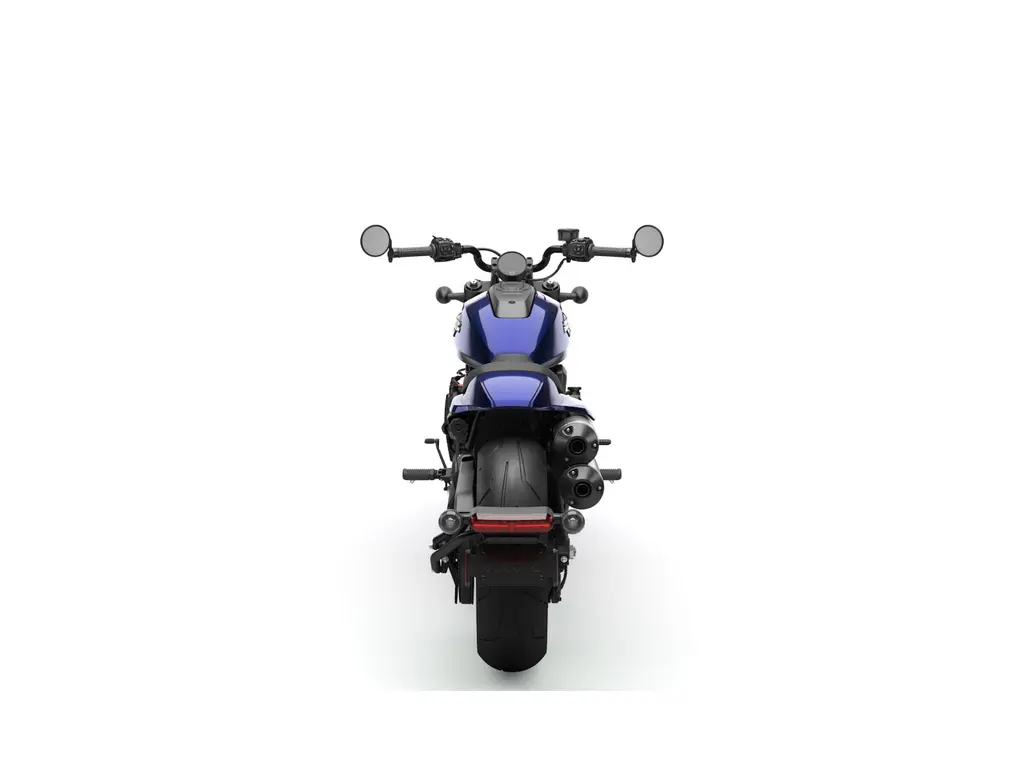

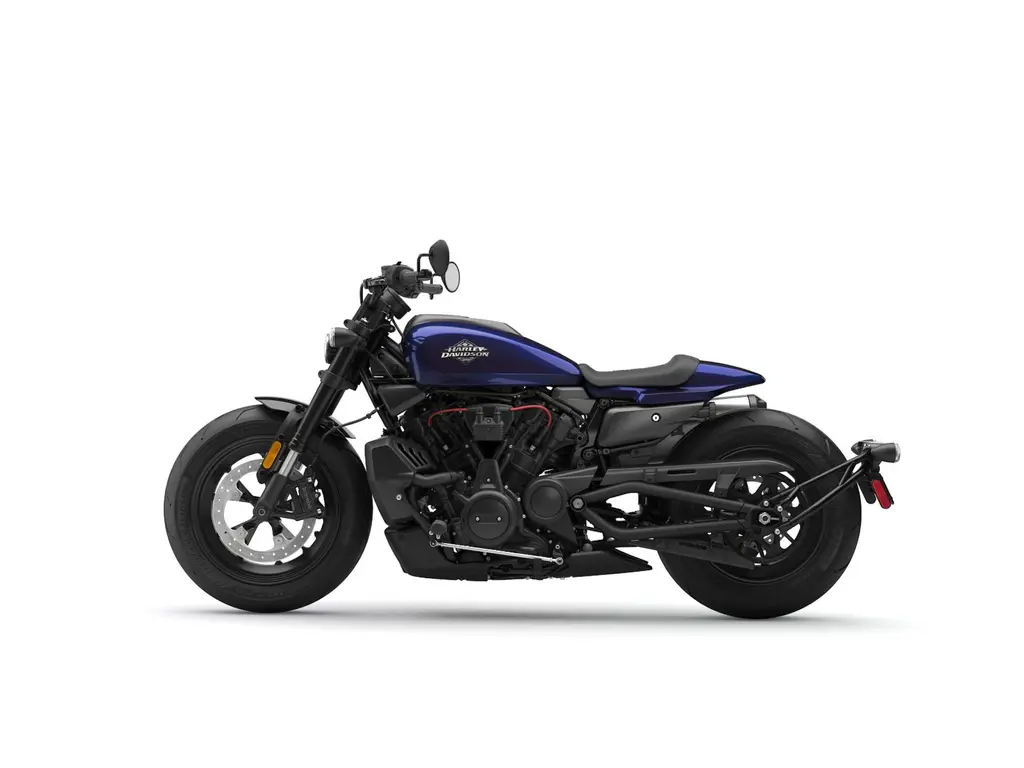

- Model: Sportster® S Mystic Shift
- Year: 2025
- Type: Sport
- Length: 2,270 mm (89.4 in.)
- Overall Width: 840 mm (33.1 in.)
- Overall Height: 1,085 mm (42.7 in.)
- Seat Height, Laden: N/A
- Seat Height, Laden (Low seat position):
- Seat Height, Laden (High seat position):
- Seat Height, Laden (Low seat position with optional ARH suspension):
- Seat Height, Laden (High seat position with optional ARH suspension):
- Seat Height, Unladen: 765 mm (30.1 in.)
- Seat Height, Unladen (Low seat position):
- Seat Height, Unladen (High seat position):
- Seat Height, Unladen (Low seat position with optional ARH suspension):
- Seat Height, Unladen (High seat position with optional ARH suspension):
- Static Ground Clearance: 90 mm (3.5 in.)
- Dynamic Ground Clearance (with optional suspension):
- Rake (steering head) (deg): 30
- Fork Angle (deg): 28
- Trail: 148 mm (5.8 in.)
- Wheelbase: 1,520 mm (59.8 in.)
- Tires, Type: Dunlop® Harley-Davidson Series, radial
- Tires, Front Model: GT503
- Tires, Front Specification: 160/70R17 73V
- Tires, Rear Model: GT503
- Tires, Rear Specification: 180/70R16 77V
- Fuel Capacity: 11.7 l (3.1 gal.)
- Reserve Fuel Capacity, Fuel Injection (warning light) (X.X gal) (X.X l): 3 l (0.8 gal.)
- Oil Capacity (w/filter): 4.5 l (4.75 qt.)
- Transmission Capacity: N/A
- Primary Chain Case Capacit: N/A
- Coolant Capacity: 2.2 l (2.32 qt.)
- Weight, As Shipped: 221 kg (487 lb.)
- Weight, In Running Order: 228 kg (502 lb.)
- Gross Vehicle Weight Rating: 418 kg (922 lb.)
- Gross Axle Weight Rating, Front: 163 kg (359 lb.)
- Gross Axle Weight Rating, Rear: 270 kg (595 lb.)
- Luggage Capacity -Volume: N/A
- Engine: Revolution® Max 1250T
- Valves: Chain-driven, DOHC, hydraulic self-adjusting lifters, intake & exhaust VVT; four valves per cylinder
- Bore: 105 mm (4.134 in.)
- Stroke: 72.3 mm (2.846 in.)
- Displacement: 1,252 cc (76.4 cu in)
- Compression Ratio: 12.0:1
- Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)
- Air Cleaner: Downdraft intake, tuned velocity stacks, washable filter media
- Exhaust: 2-into-1-into-2; catalyst in muffler
- Lubrication System: Semi-Dry Sump
- Primary Drive: Gear, 49/89 ratio
- Final Drive: Belt, 34/80 ratio
- Clutch: Mechanical, 8 plate wet, assist & slip, 1090N
- Transmission: 6-speed
- Gear Ratios (overall) 1st: 12.21
- Gear Ratios (overall) 2nd: 9.022
- Gear Ratios (overall) 3rd: 6.994
- Gear Ratios (overall) 4th: 5.641
- Gear Ratios (overall) 5th: 4.731
- Gear Ratios (overall) 6th: 4.131
- Frame: Stressed-member, high strength low alloy steel trellis frame; stamped, cast, and forged junctions; MIG welded; aluminum forged mid-structure
- Swingarm: High strength low alloy steel, tubular sections, stamped x-member, forged axle junctions; MIG welded
- Front Fork: 43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
- Front Fork, Optional:
- Rear Shocks: Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
- Rear Shocks, Optional:
- Wheels, Optional Style Type: N/A
- Wheels, Front Type: Aluminum cast, satin black
- Wheels, Front Diameter: 17 in. (432 mm)
- Wheels, Front Width: 4.5 in. (114 mm)
- Wheels, Rear Type: Aluminum cast, satin black
- Wheels, Rear Diameter: 16 in. (406 mm)
- Wheels, Rear Width: 5 in. (127 mm)
- Brakes, Caliper Type: Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
- Brakes, Rotor Type: Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
- Brakes, Front Diameter: 320 mm (12.6 in.)
- Brakes, Front Thickness: 5 mm (0.2 in.)
- Brakes, Front is dual: No
- Brakes, Rear Diameter: 260 mm (10.2 in.)
- Brakes, Rear Thickness: 5 mm (0.2 in.)
- Brakes, Anti-Lock Braking System (ABS): Standard
- Suspension Travel, Front: 92 mm (3.6 in.)
- Suspension Travel, Rear: 82 mm (3.2 in.)
- Engine Torque Testing Method: J1349
- Engine Torque: 126 Nm (93 ft-lb)
- Engine Torque (rpm): 6,000
- Power (Hp/kW): 121 HP / 90 kW @ 7500 rpm
- Lean Angle Testing Method: J1168
- Lean Angle, Right (deg.): 35
- Lean Angle, Left (deg.): 35
- Fuel Economy Testing Method: Estimated City/Hwy
- Fuel Economy: 4.8 l/100 km (49 mpg)
- CO2 Emissions Testing Method: N/A
- CO2 Emissions: N/A
- Stationary Noise (BRZ only): N/A
- Infotainment system: N/A
- Screen Size: 4 in (102 mm)
- Type: Color TFT
- Watts Per Channel: N/A
- Speakers: N/A
- Speaker Size: N/A
- Headset Specifications (if equipped): Bluetooth
- AM: N/A
- FM: N/A
- MW: N/A
- LW: N/A
- Weather Band (WB): N/A
- SD Card, Flash Drive and MP3 - via USB Connection: N/A
- Languages: Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese, , , , ,
- Hands-free Mobile Phone - via Bluetooth: Standard
- Voice Recognition Languages: Phone functions only: Phone dependent
- Voice Recognition Languages: Tuner/Media/Navigation: Phone dependent
- Rider/Passenger Intercom: Headset function only
- Vehicle Information Screen (Air temperature, oil pressure and EITMS): TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- Text-to-Speech (TTS) Languages: Phone dependent
- USB: Charging and Instrument update, USB-C, 5V, 3A
- Phone Connectivity: N/A
- Bluetooth: Phone/Media Supported
- Navigation - via Bluetooth: H-D Mobile App
